( Non-Penetrating Roof Mount for Satellite. Solid and Mesh Antennas )

NP-10



During the course of design, a preliminary study of wind stresses imposed on satellite components up to a 10-foot aluminum mesh antenna and the NP-10 NON PENETRATING MOUNT was performed.

The NP-10 Non-Penetrating Roof Mount is designed to survive without permanent damage to deformation is subjected to 145 mile-per-hour wind speeds while supporting up to a 10-foot aluminum mesh antenna.

1 Wind force on the antennas (worst case wind normal to face) 2547 lbs.
2 Vertical shear (weight of reflector mount and ballast) 2940 lbs.
3 Horizontal shear 2547 lbs.
4 Overturning moment 12,736 lbs.
5 Maximum load on mount brace legs (compression and tension) 2547 lbs.
6 Maximum load on mount brace legs (axial bending moment) 764 lbs. ft.
7 Maximum load on ballast pads and ballast pad attachment                           bracket (turning moment) 1061 lbs. ft.
8 Maximum load on mast (axial bending moment) 6387 lbs. ft.
9 Ballast each pad with 11-40 lb. concrete blocks (6 pads) 440 lbs. total                each pad

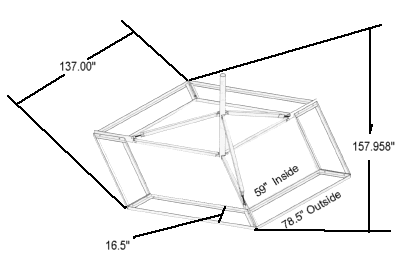

NP-10 Non Penetrating Roof Mount

Large Dish Non Pen   $1200.00

Will support a 10-foot mesh antenna,  includes a 3.5" OD mast pole as well as six ballast pads that hold 66 standard 40 lb. concrete blocks.  The brace legs are adjustable to make it easier to plumb the pole.  UPS shippable,    Weight: 312 lbs  4 pcs. Hundred weight qualified. Please call on current pricing. $1200.00



 SatelliteDish.com - Engineering Dish Wind.Satellite Engineer Drawings and Wind Load calculations. Sat dish engineering wind specifications. - click here.
