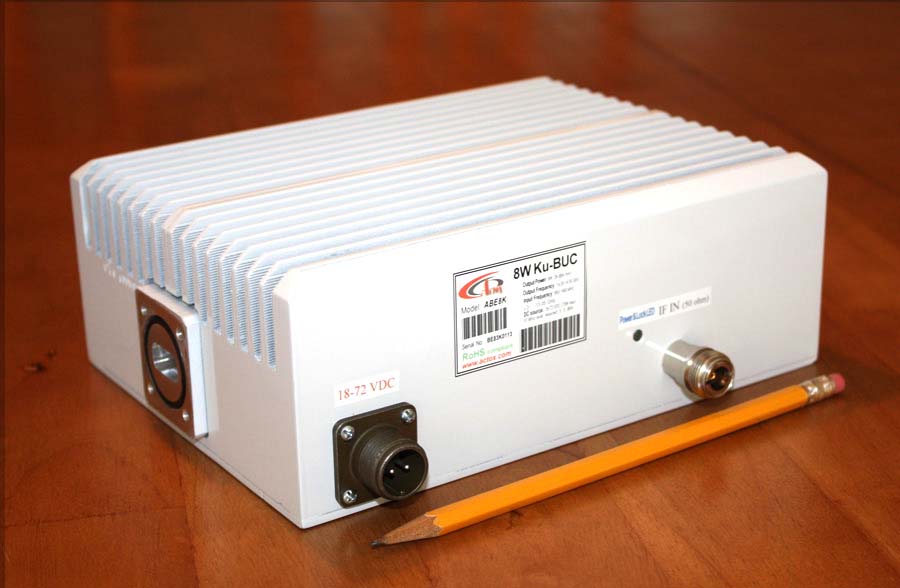

ABE8KL -  8W Low Ku-Band Block Up Converter

This unit features:

No “Cooling Fan” Solution

High Efficiency Output Power (8W minimum @ P1dB over temperature)

DC: Auto-ranging and Auto-detected Power Supply, +18 VDC~+72 VDC via IF Cable or MS Connector, 74 W Max



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABE8KL

13.75 to 14.25 GHz

12.80 GHz

950 to 1,450 MHz

8W (+39 dBm min.)

N-Type

ABE8KLF

13.75 to 14.25 GHz

12.80 GHz

950 to 1,450 MHz

8W (+39 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+39 dBm minimum over temperature

Conversion Gain

65 dB Min.,68 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-35 dBc/Hz max. @ 10Hz
-65 dBc/Hz max. @ 100 Hz

-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

-95 dBc/Hz max. @ 100 kHz

-120 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

+18 VDC~+72 VDC via IF or MS Connector 74W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

74 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

211 (L) x 160 (W) x 78 (H)



Weight(kg)

3.1 (max.)
