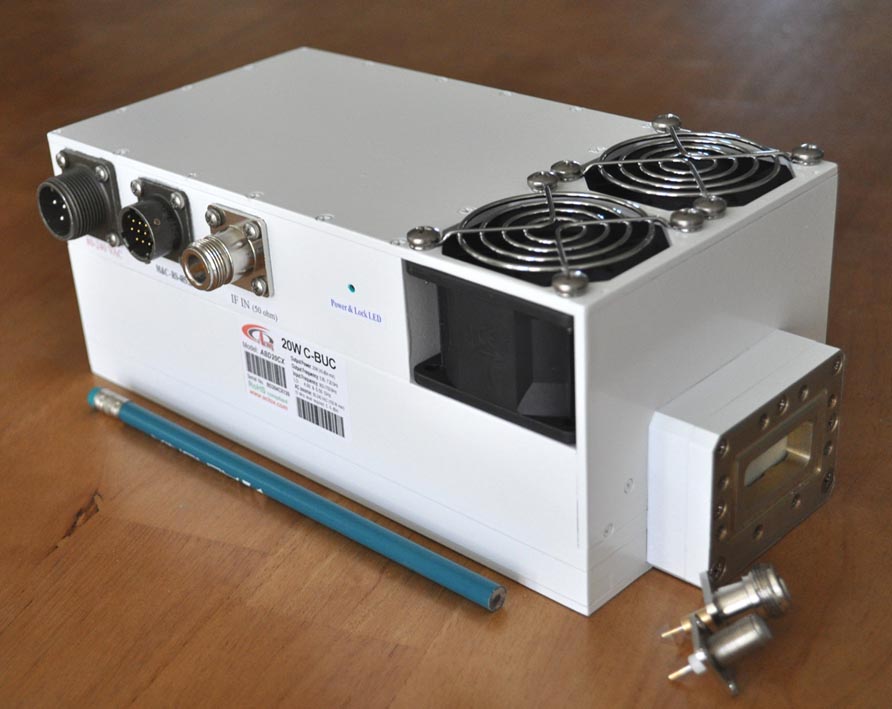

ABC20XC/ABC20XCF - 20W Full C-Band BUC
ABC20XC/ABC20XCF - 20W Full C-Band BUC

This unit features:

High Efficiency Output Power (20W minimum @ P1dB over temperature)

Smallest package size and weight

18-72VDC Autoranging via MS connector Input

RoHS Compliant

Power and Lock Status LED

For the Complete description please see the pdf file below.



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABC20XC

5.875 to 7.2 GHz

4.90 & 5.5 GHz

950 to 1,700MHz

20W Linear (+43 dBm min.)

N-Type

ABC20XCF

5.875 to 7.2 GHz

4.90 & 5.5 GHz

950 to 1,700MHz

20W Linear (+43 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-137

Output Power @ P1 dB

+43 dBm minimum over temperature

Conversion Gain

68 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-100 dBc/Hz max. @ 100KHz
-90 dBc/Hz max. @ 10KHz

-70 dBc/Hz max. @ 1kHz

-80 dBc/Hz max. @ 1kHz

-70 dBc/Hz max. @ 100Hz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option

DC Power 18-72VDC 145W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

Power Consumption

145 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

257 (L) x 120 (W) x 95 (H)



Weight(kg)

3.5kg (max.)
