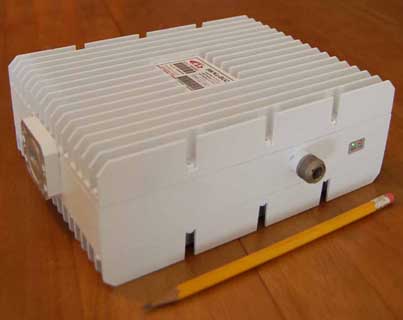

ABA8K / ABA8KF - 8W Ku-Band Block Up Converter

This unit features:

No “Cooling Fan” Solution

High Efficiency Output Power (8W minimum @ P1dB over temperature)

Three Power Supply Selections:

DC: +48 VDC Operation (+38 to +60 VDC)

DC: +24 VDC Operation

AC: 110V/220V

Option: Separation of power supply port (MS-connector)



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABA8K

14.00 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

8W (+39 dBm min.)

N-Type

ABA8KF

14.00 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

8W (+39 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+39 dBm minimum over temperature

Conversion Gain

52 dB Min.,62 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-30 dBc/Hz max. @ 10Hz
-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

-100 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

+18 VDC~+24 VDC via IF 74W max

Power Option B

+38 VDC~+60 VDC via IF 73W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

74 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

212 (L) x 159 (W) x 80 (H)



Weight(kg)

3.3 (max.)
