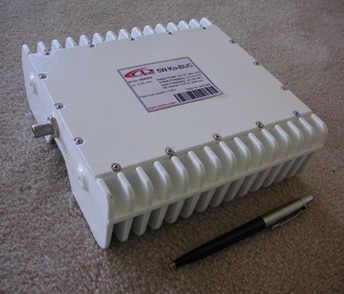

Parameter
|
Value
|
|
Output Interface
|
Waveguide, WR-75
|
|
Output Power @ P1 dB
|
+36 dBm minimum over
temperature
|
|
Conversion Gain
|
56 dB nom.
|
|
Required [Frequency]
External Reference
[Input Power]
[Phase
Noise]
|
10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-125 dBc/Hz max. @ 100 kHz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 10 kHz
|
|
L.O. Phase Noise
|
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
|
|
Input V.S.W.R.
|
2:1 max
|
|
Output V.S.W.R.
|
2:1 max
|
|
|
|
Parameter
|
Value
|
|
DC Power Requirement
|
+15
to +24 V
|
|
Mute
|
Shut off the HPA in case of L.O.
unlocked
|
|
Input Interface
|
N-type, female (50 Ohm)
[ABA5KU]
F-type, female (75 Ohm) [
ABA5KUF]
|
|
Power Consumption
|
38 W max.
|
|
Operating Temperature
|
-40 to +55 degrees C
|
|
Storage Temperature
|
-40 to +75 degrees C
|
|
Size & Weight
|
176 mm (L) x 174 mm (W) x 60 mm
(H), 1.9 kg max.
|
|
