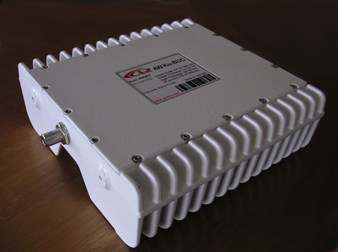

ABA4KU/ABA4KUF - 4W Ku-Band Block Up Converter



This unit features:

Small Size and Light Weight

High Efficiency Output Power (4W minimum @P1dB over temperature)

Low Power Consumption



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABA4KU

14.0 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

4W (+36 dBm min.)

N-Type

ABA4KUF

14.0 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

4W (+36 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+36 dBm minimum over temperature

Conversion Gain

53 dB Min.,60 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-30 dBc/Hz max. @ 10Hz
-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

-100 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max
