ABA3LKL

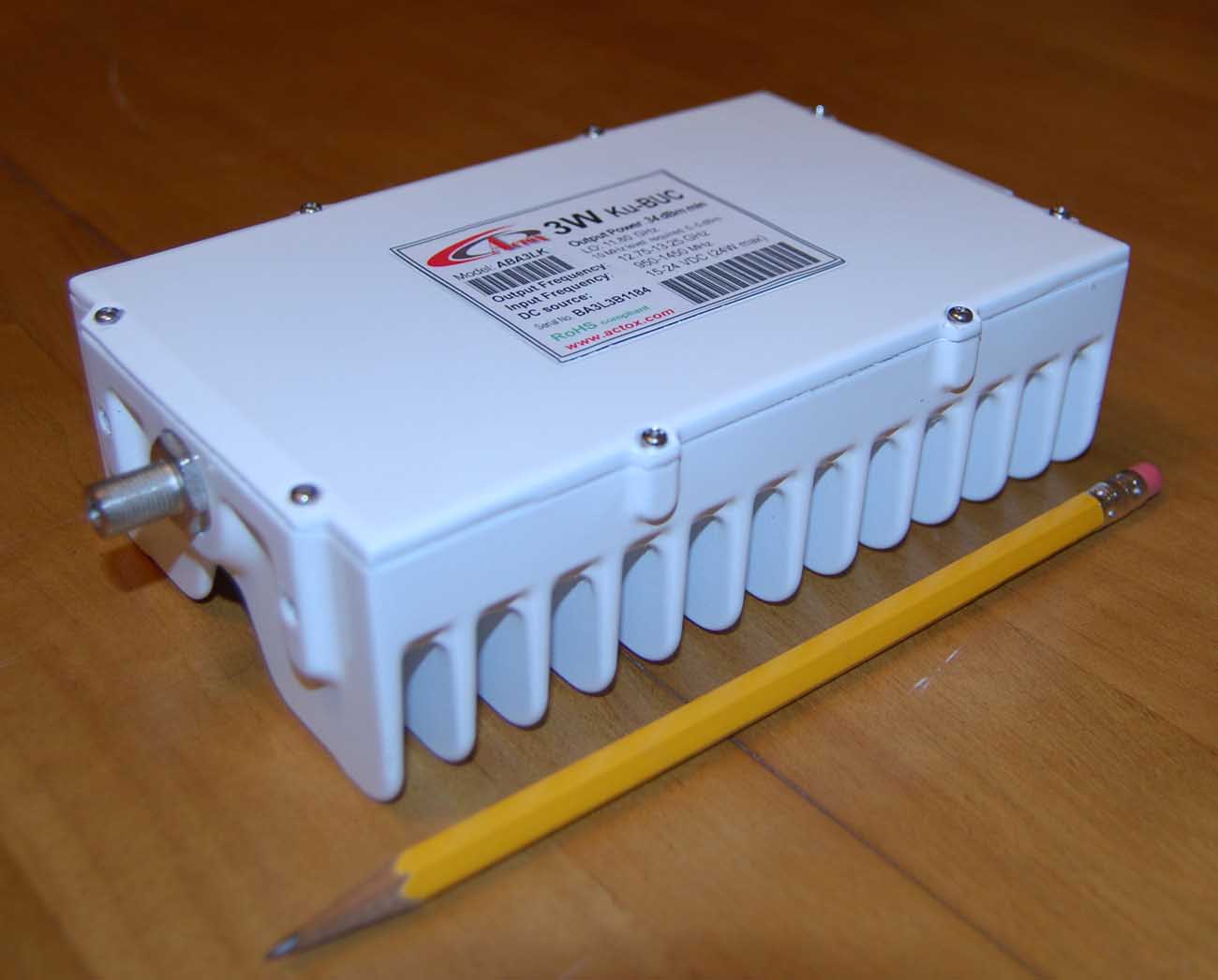

/ ABA3LKLF - 3 W Low Ku-Band BUC  |
||||||||||||||||||||
|
||||||||||||||||||||
|
Model RF
Frequency Local
Frequency IF
Frequency Output
Power Connector ABA3LKL 12.75
to 13.25 GHz 11.80
GHz 950
to 1,450 MHz 3W
(+35 dBm min.) N-Type ABA3LKLF 12.75
to 13.25 GHz 11.80
GHz 950
to 1,450 MHz 3W
(+35 dBm min.) F-Type |
||||||||||||||||||||
|
Parameter |
Value |
|
Output Interface |
Waveguide, WR-75 |
|
Output Power @ P1 dB |
+35 dBm minimum over temperature |
|
Conversion Gain |
53 dB Min.,62 dB nominal |
|
Required Frequency External Reference Input Power Phase Noise |
10 MHz (sine-wave) -70 dBc/Hz max. @ 1 kHz |
|
-80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1 MHz
|
|
|
Input V.S.W.R. |
2:1 max |
|
Output V.S.W.R. |
2:1 max |
