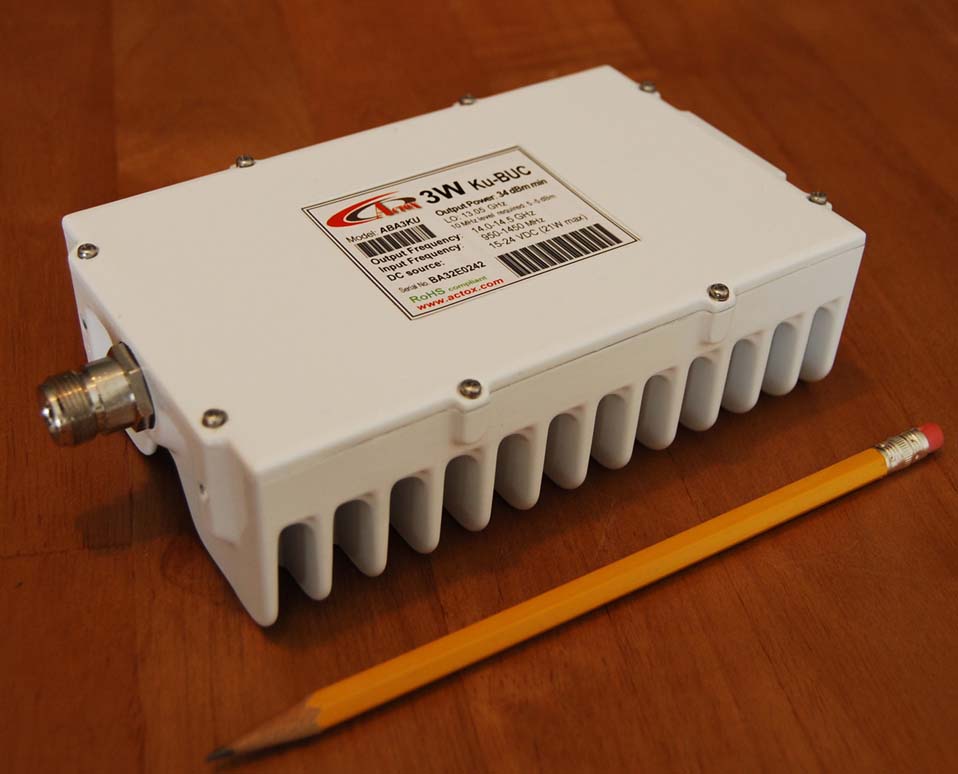

ABA3KUX / ABA3KUXF - 3W Extended Ku-Band BUC


This unit is fixed gain transmitter incorporating a low phase noise Phase Locked Local

Oscillator and a highly reliable MMIC High Power Amplifier, and converts

L Band (950 to 1450 MHz) IF Input to Ku Band (13.75 to 14.5 GHz) RF Output.



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABA3KUX

13.75 to 14.5 GHz

12.80 GHz

950 to 1,700 MHz

3W (+35 dBm min.)

N-Type

ABA3KUXF

13.75 to 14.5 GHz

12.80 GHz

950 to 1,700 MHz

3W (+35 dBm min.)

F-Type







Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+35 dBm minimum over temperature

Conversion Gain

53 dB Min.,60 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-30 dBc/Hz max. @ 10Hz
-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

-100 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

DC Power Requirement

+15 to +24 V

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

18 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

165 (L) x 107 (W) x 49 (H)



Weight(kg)

1.1 (max.)
